Outdoor Shower Free-Standing Installation Instruction
All plumbing fitted inside shower panel
Before Installation - LICENSED PLUMBERS REQUIRED
Check the product before installation
1,drill holes and clean the dust out of the hole
2,bring one hot and cold water line to where the
shower is being installed, 270mm above the ground
3,connect pre-installed 1/2" hot and cold water flex to your supply
4, tighten the nut with a torque wrench, covered by screw caps

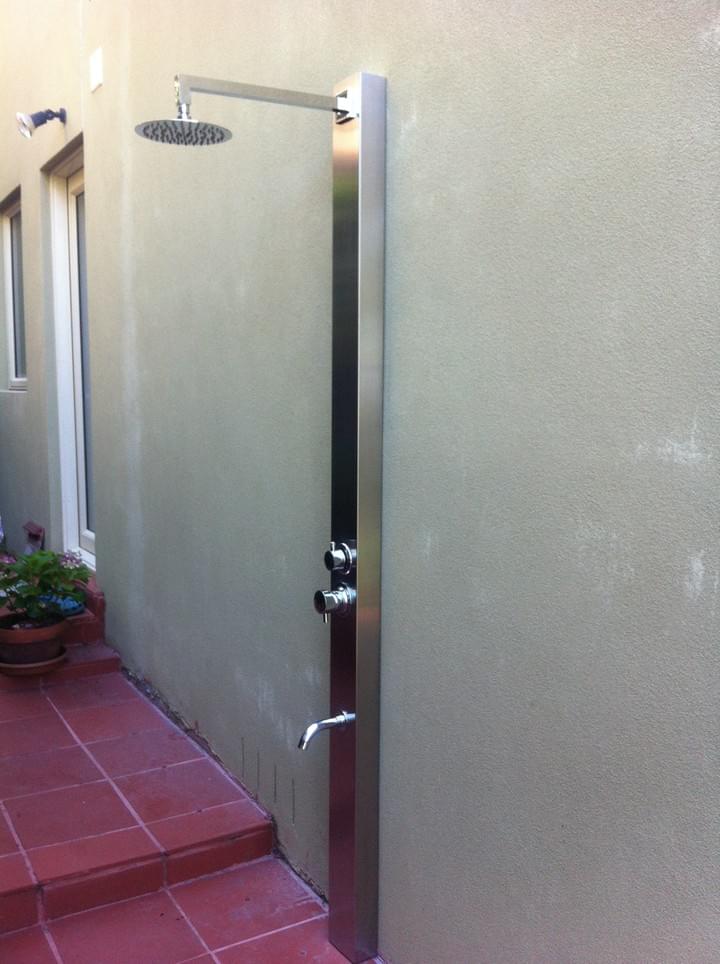

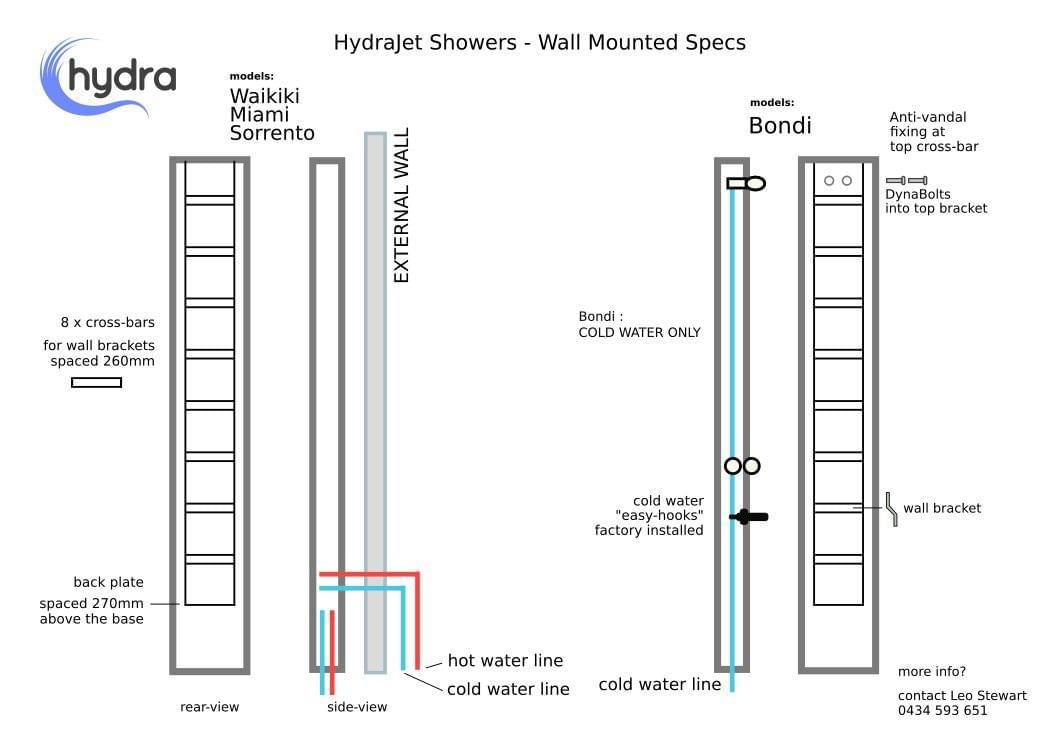

Outdoor Shower Wall-Mount Installation Instruction
All plumbing fitted inside shower panel
STEP ONE
mark and drill your pilot holes, install one support bracket at the top of the shower and the other support in the middle
STEP TWO

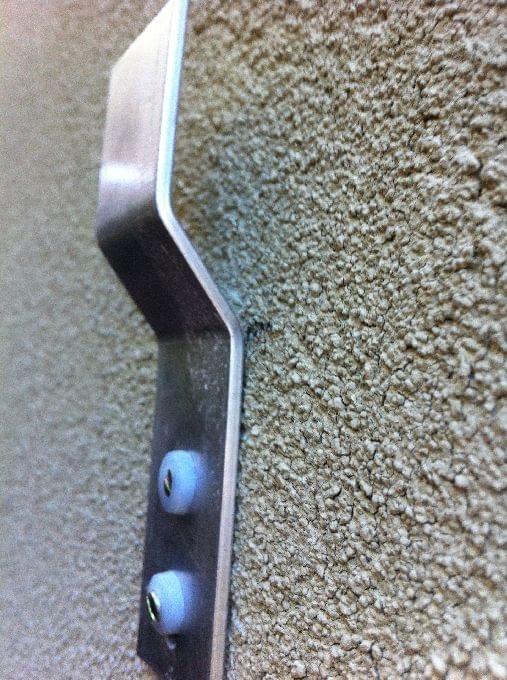

remove the rear panel and free standing base plate from the shower, attached supplied 2* mounting brackets to the wall,they will support the 2*rear support bars at the rear of shower
STEP THREE

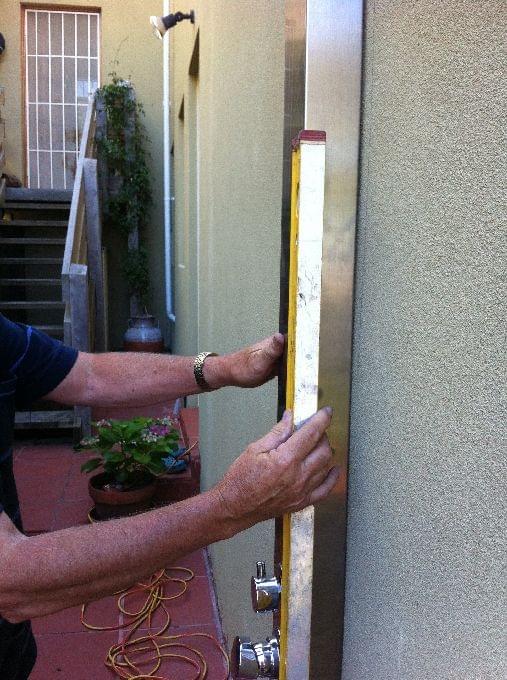

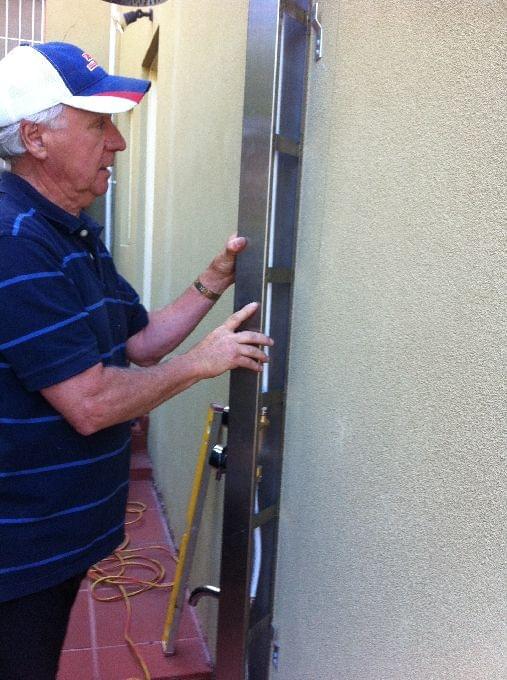

connect the 1100mm easy hookers hot and cold water pipes to your water supply, mount the shower to the wall, level the shower
FINIAL STEP
If needed run a band of silicon down the inside of the back edges, but this is not necessary
